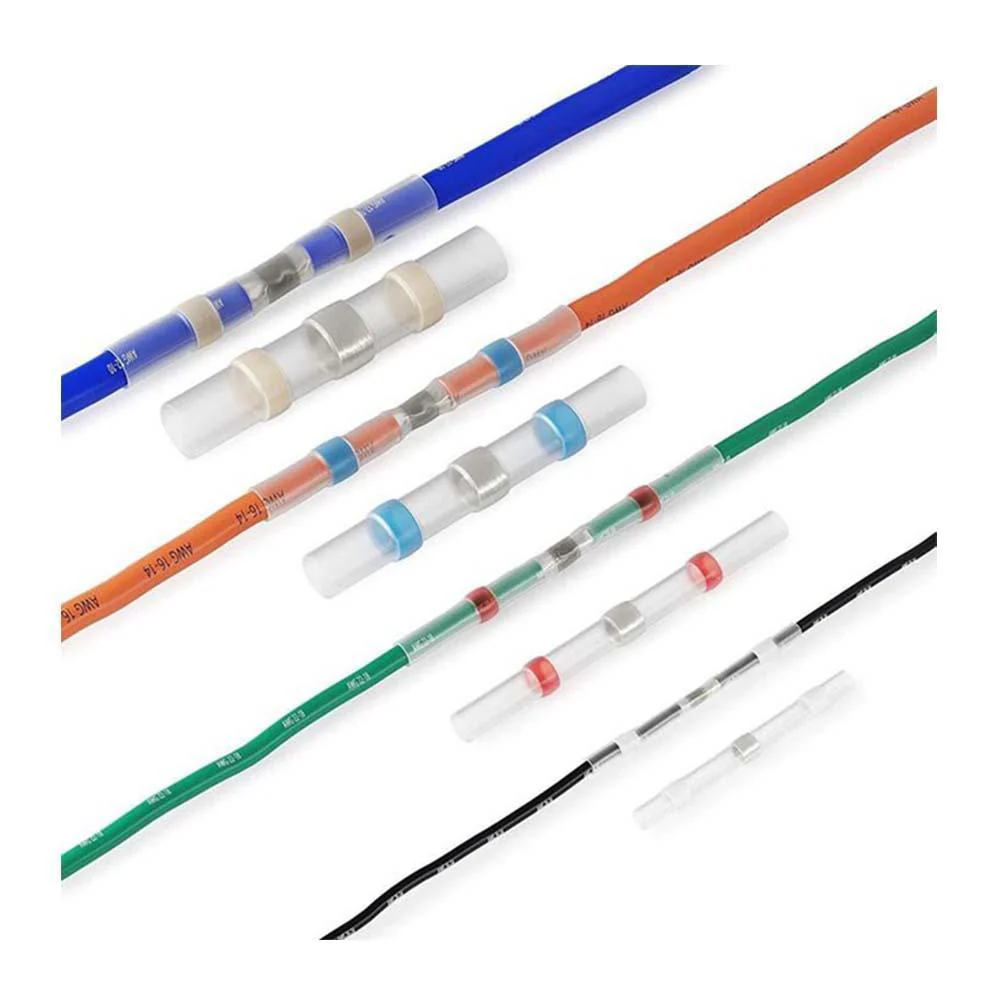

Waterproof Solder Wire Connectors

Do you still have trouble in doing some wire connecting job? Find it hard to deal with? Don't worry, our durable, reliable, Waterproof Solder Wire Connectors  will be here to make your work easy and well done!





Product Features:

• Wide Application - Can be ideal use in marine and automobile applications
• Easy to Use - No need to crimp, just heat then complete. An easy one step connection of wires, soldered, insulated and sealed
• Fantastic Design - Dual-walled design ensures waterproof seal and prevents wire corrosion. Outside polyolefin tubing provides insulation and improves pullout strength; Hot melt adhesive & solder inside ensures wires tightly connected and avoids wires slipping out of the terminal.
• Convenient - Specific color for specific size, easy to identify and pick up for use.Transparent sleeve provides precise inspection when strip and insert wires inside

How to Use:

1. Prepare wires
2. Select correct heat shrinkable butt connector
3. Strain the wires and fix it into the prefluxed solder sleeve
4. Evenly heat the connector by heat gun until absolutely melted and fully recovered
5. Remove the connector from heat gun and wait it cooled

Details:

• Material: Tinned copper

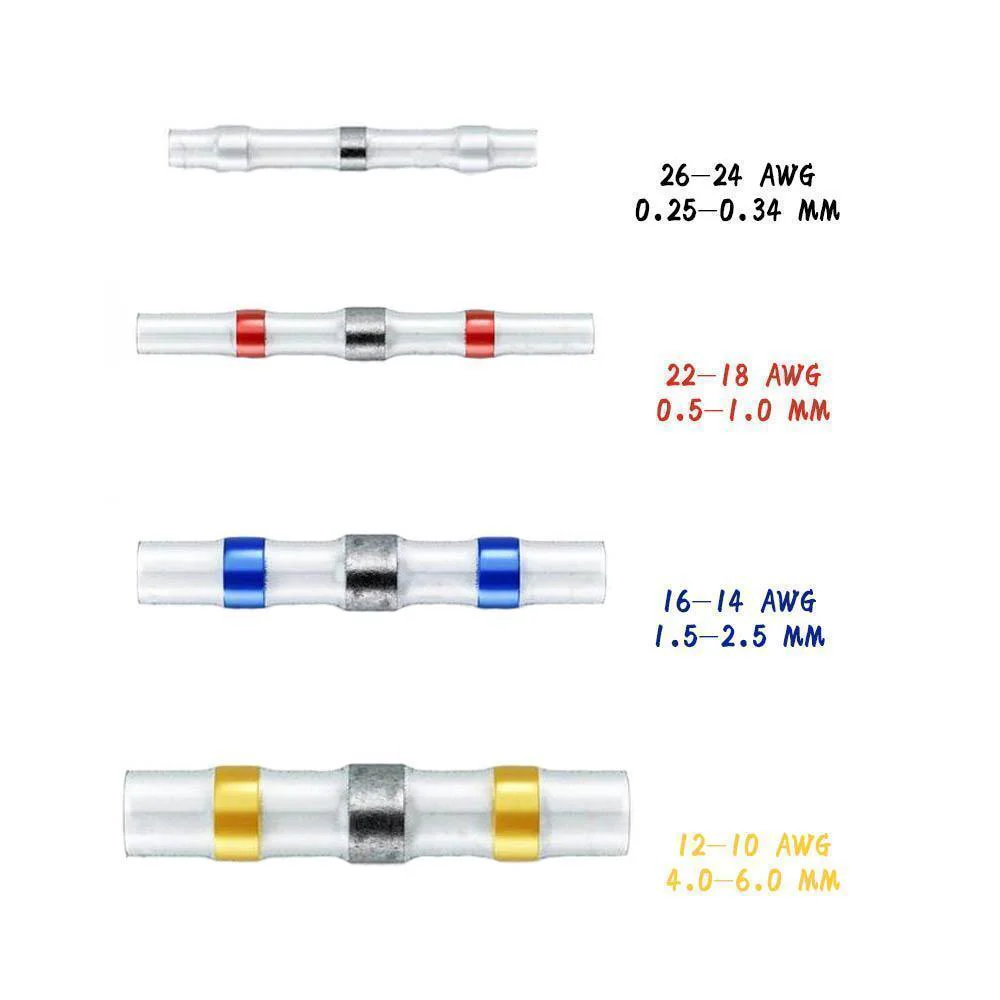

• Colors & Size:
  White Connectors (26-24 AWG)
  Red Connectors (22-18 AWG)
  Blue Connectors (16-14 AWG)
  Yellow Connectors (12-10 AWG)

Package Includes:

1 x Waterproof Solder Wire Connectors
